Every Instrument is First and Foremost a Yamaha Acoustic Piano.
The Hybrid Hardware is only installed new in the factory to ensure proper play and Calibration.
| Category | SH3 / TA3 | SC3 |
|---|---|---|
| Upright Models |
U1SH3, U3SH3, YUS1SH3, YUS3SH3, YUS5SH3 U1TA3, YUS1TA3, YUS5TA3 |
B1SC3, B2SC3, B3SC3, P22SC3 |
| Baby & Grand Models |
GC1SH3, GC2SH3, GC1TA3 C1xSH3, C2xSH3, C3xSH3, C5xSH3, C6xSH3, C7xSH3 C1xTA3, C3xTA3 |
GB1kSC3 |
| Binaural Piano | Yes — Brand New Piano Sample | Yes — Brand New Piano Sample |
| Concert Grand Voices | CFX Concert Grand; Bösendorfer | CFX Concert Grand; Bösendorfer |
| Other Piano Voices |
Pop Grand, Ballad Grand, Upright Piano, Historical Pianos (Scarlatti, Mozart, Beethoven, Chopin) |
Upright Piano |
| Electric Pianos | Stage E. Piano, DX E. Piano, Vintage EP | Stage E. Piano, DX E. Piano, Vintage EP |
| Other Instruments |
Harpsichord 8′, Harpsichord 8′+4′, Vibraphone, Celesta, Organ Principal, Organ Tutti, Jazz Organ, Strings, Choir, Synth Pad, Piano + Strings, Piano + Synth Pad, Piano + DX E. Piano |
Harpsichord 8′, Celesta, Organ Principal, Jazz Organ, Strings, Synth Pad |
| Bluetooth | MIDI & Audio (not compatible with Bluetooth headphones) | MIDI & Audio (not compatible with Bluetooth headphones) |
| USB Flash Drive | Playback MIDI files (483+ sounds) & record | Playback MIDI files (483+ sounds) & record |
| USB Wi-Fi Adapter | Yamaha UC-WL01 (optional) — wireless to tablet/laptop | Yamaha UC-WL01 (optional) — wireless to tablet/laptop |
| Aux In | 3.5mm stereo (sound modules, laptop, iPhone) | 3.5mm stereo (sound modules, laptop, iPhone) |
| Aux Out | ¼" R/L+R (instrument cable) | — |
| MIDI (DIN) | In/Out | — |
| USB B (Computer) | MIDI & Audio, bi-directional; best for DAW recording | MIDI & Audio, bi-directional; best for DAW recording |
| Headphone Jacks | 2 × 3.5mm | 2 × 3.5mm |
| Feature | Details |
|---|---|
| Built-in Rhythms |
20 built-in rhythms with Auto Bass function (On/Off), plus Rhythm Intro, Ending and Sync options. Rhythm Styles: 8 Beat, 16 Beat, Shuffle 1, Shuffle 2, Shuffle 3, Gospel, 8 Beat Ballad, 6/8 Slow Rock, Fast Jazz, Slow Jazz, Swing, Jazz Waltz, Samba, Bossa Nova, Rumba, Salsa, Kids Pop, 6/8 March, Christmas Swing, Christmas 3/4. |
| On Board Metronome | Integrated metronome for practice and performance support. |
| Reverb |
6 reverb types plus “Off.” Available in digital mode or TA3 with headphones. Adjustable depth in 5% increments (1–20) or Off. Reverb Types: Off – No Reverb Recital Hall – 20–50 person recital hall Concert Hall – professional-level concert hall Chamber – solarium in a mansion Cathedral – like St. Patrick’s Cathedral, NYC Club – jazz club (Blue Note, NYC) Plate – studio reverb via audio equipment |
| Voice Settings |
VRM (Virtual Resonance Modeling) — Piano voices only. Simulates natural nuance of strings, damper, and body resonance. Can be On or Off. Damper Resonance: 10-point adjustment (when VRM is On). Natural damper-string interaction. Damper noise can be On/Off. String Resonance: 10-point adjustment (when VRM is On). Effect applied when notes are pressed. Duplex Scale Resonance: 10-point adjustment of aliquots for sympathetic vibrations. Body Resonance: 10-point adjustment. Simulates sound contribution of rim, soundboard, beams, and case. |
| Grand Expression Modeling |
Two modes: Static or Dynamic (default).
|
| Keyboard Transpose |
Shift pitch ±12 semitones to play in a different key without transposing notation. Example: set to +6, pressing Middle C produces the G above Middle C. |
| Half Pedal Point |
Sustain pedal mimics acoustic behavior with variable sustain (not just On/Off). Can lower sustain by 2 points or raise by 4 points. |
| Touch Sensitivity |
Adjustable response levels: • -2 (Soft) – high volume even with light playing • -1 (Soft/Medium) – high volume with moderate playing • 0 (Medium) – standard touch sensitivity • +1 (Medium/Hard) – requires moderately strong playing for high volume • +2 (Hard) – requires strong playing for high volume • OFF (Fixed) – same volume regardless of touch (default for Harpsichords) |
| Master Tune |
Fine-tune A above Middle C (A440) from 414.8 Hz to 466.8 Hz in 0.2 Hz increments. All other 87 notes adjust accordingly. Allows accurate pitch matching with other instruments, recordings, or acoustic piano when layering through TA3/Silent Piano. |
| Scale Type | Selectable temperament options for alternate tuning systems. |
| Yamaha TA3, SH3 and SC3 Spec Sheet | TA3 | SH3 | SC3 | ||
|---|---|---|---|---|---|
| Silencing System | Upright Mechanism | Hammer Shank Stopper Operated by Middle Pedal (YUS5 TA3, SH3 Silencing Lever) | |||
| Grand Mechanism | Motor Driven – (GB1kSC3 – Silencing Lever) | ||||
| Action (Only for Grands) | Quick Escape Double Jack | ||||
| Soundboard Speaker System | Mechanism | Trans Acoustic Technology | – | – | |
| Transducer | Exclusively for TA3 | – | – | ||
| Control Interface | Keyboard | Touch Response | Soft, Soft/Medium, Medium, Medium/Hard, Hard, Fixed | ||
| Upright Pedals – Acoustic | Soft, Silencing, Sustain YUS5 – Soft, Sostenuto, Sustain | ||||
| Baby Grand& Grand Pedals – Acoustic | Una Corda, Sostenuto, Sustain GB1k – Una Corda, Bass Sustain, Sustain | ||||
| Display | Type | 7 Segment LED | |||
| Panel | Language | English | |||
| Sensor System | Key Sensors | System | Articulation Sensor System | ||

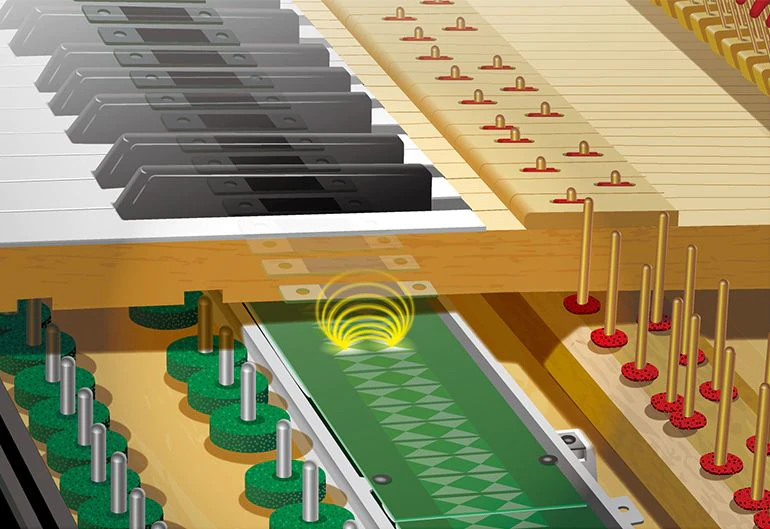

| Key Sensors | Non-Contact Continuous Detection Electromagnetic Inductive Type | ||||
| Hammer Sensors (Baby & Grand Pianos Only) | Non – Contact 2 Point Optical Fiber Type | – | |||
| Pedal Sensors | Left (Soft) Pedal | On / Off Detection Sensor | |||
| Sostenuto Pedal | ON / Off Detection Sensor | – | |||
| Sustain Pedal | Continuous Detection Sensor | ||||
| Voices | Tone Generation | Piano Sound | Yamaha CFX, Bosendorfer Imperial – New Samples for 2023 – | ||
| Binaural Sampling | For CFX and Bosendorfer W/ Headphones only | ||||
| Piano Effects | VRM Virtual Resonance Modeling | YES | |||
| Grand Expression Modeling | YES | ||||
| Key- Off Samples | YES | ||||
| Smooth Relase | YES | ||||
| Polyphony (MAX) | 256 | ||||
| Preset | Number of Voices | 25 (Piano 5 + FortePiano 4 + Others 16) | 12 (Piano 3 + Others 9) | ||
| Voices for MIDI Song Playback | 480 XG Voices + 12 Drum/SFX Kits | – | |||
| Effects | Types | Reverb | 6 Types & Off | ||
| Brilliance | 5 Types | ||||
| IAC Intelligent Audio Control | Yes | ||||
| Stereo Optimizer | Yes for All Instruments except CFX and Bosendorfer | ||||
| Songs (MIDI) | Preset | # of Preset Songs | 25 Voice Demo Songs 50 Classics | 12 Voice Demo Songs, 50 Classics | |
| Recording Internal | Number of Songs | 10 | |||
| Data Capacity | approx. 500 KB / SONG | ||||
| Format | Playback | SMF (Format 0, Format 1) | |||
| Recording | SMF (Format 0 ) | ||||
| Songs Audio .WAV File | Recording Time (Max.) | 80 Minutes / Song | |||
| Format | Playback | WAV (44.1 kHz, 16 bit, Stereo | |||
| Recording | WAV (44.1 kHz, 16 bit, Stereo | ||||
| Hybrid Class | TA3 | SH3 | SC3 | ||
| Functions | Rhythms | Number of Rhythms | 20 | ||
| Overall Controls | Metronome | Yes | |||
| Tempo Range | 5 – 500 | ||||
| Transpose | – 12 – 0 – + 12 | ||||
| Tuning | 414.8 – 440.0 – 466.8 Hz ( adj in .2Hz Increments) | ||||
| USB Audio Interface | 44.1 kHz, 24 bit, Stereo | ||||
| Bluetooth | Audio | Supported Profile | A2DP | ||
| Compatible Profile | SBC | ||||
| MIDI | Comply with Bluetooth Low Energy MIDI Specification | ||||
| BlueTooth Version | 4.2 | ||||
| Wireless Output | Bluetooth Class 2 | ||||
| Max. Communication Distance | Up to 10 meters | ||||
| Radio Frequency (Operational Frequency) | 2402 – 2480 MHz | ||||
| Max. Output Power EIRP | 4dBm | ||||
| Type of Modulation | FHSS | ||||
| Storage & Connectivity | Storage | Internal Memory | Approx 1.3 MB | ||
| External Drives | USB Flash Drive – BELOW 50 GB BEST | ||||
| Connectivity | DC IN | 24 V | 16 V | ||
| Headphones | Stereo Mini Jack x 2 – Wired Headphones Only | ||||
| MIDI | IN, OUT | USB to Host / Bluetooth Midi | |||
| AUX IN | Stereo Mini Jack | USB to HOST / Bluetooth Audio | |||
| AUX OUT | Stereo or Mono 1/4 instrument Cable | – | |||
| USB TO DEVICE | YES | ||||
| USB to HOST | YES | ||||
| AUTO POWER OFF | YES | ||||
| Head Phones & Head Phones Hanger Included | YES | ||||
| Bench with Storage Included | YES | ||||
| 50 Greatest Hits Song Book Included | YES | NO | |||
| Owners Manual Included | YES | ||||
| Power Chord Model – Included w/ piano | PA-500 – DC 24 Volts, 2.5A | PA-300C DC 16V, 2.4A | |||
| Separately Sold Accessories | USB WIRELESS LAN ADAPTER – (UD-WL01) | ||||
