Accessible. Versatile. Genuinely Yamaha.

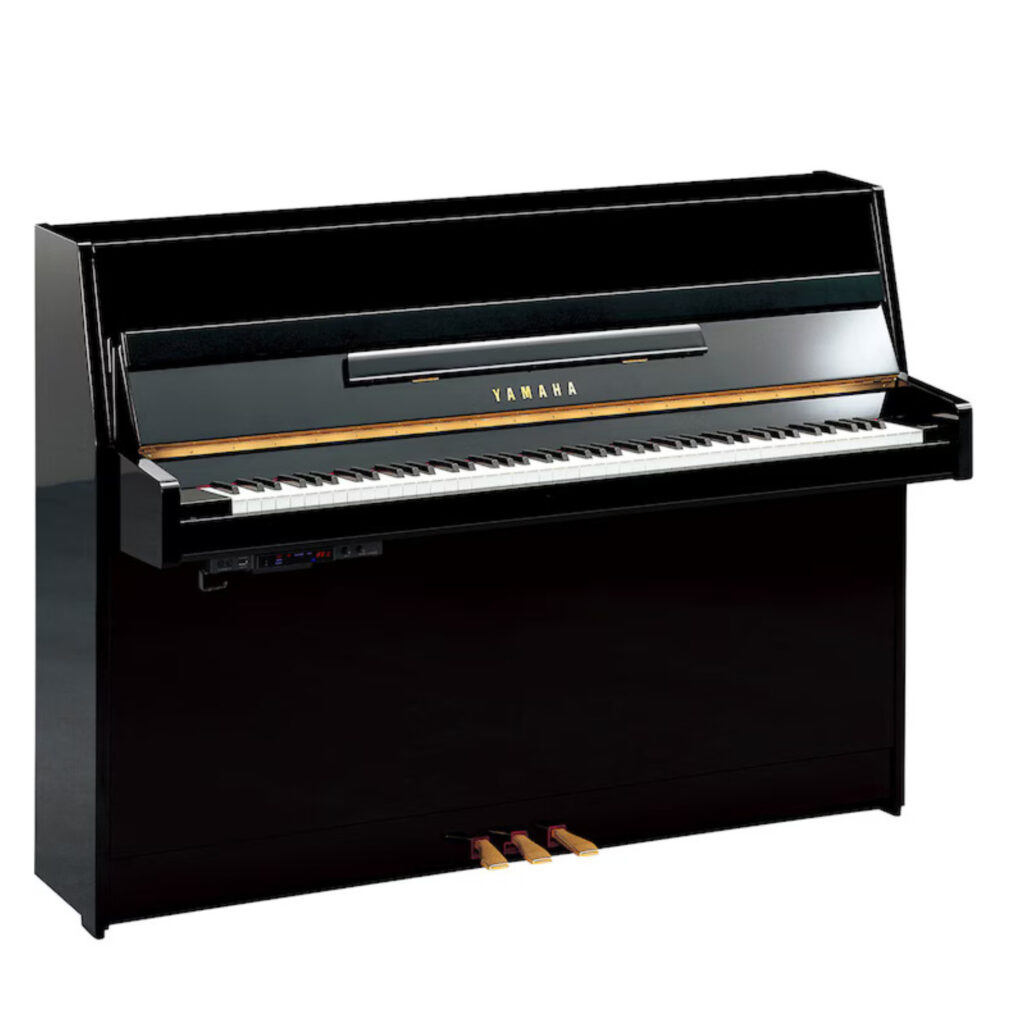

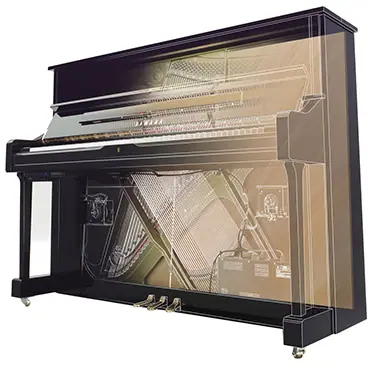

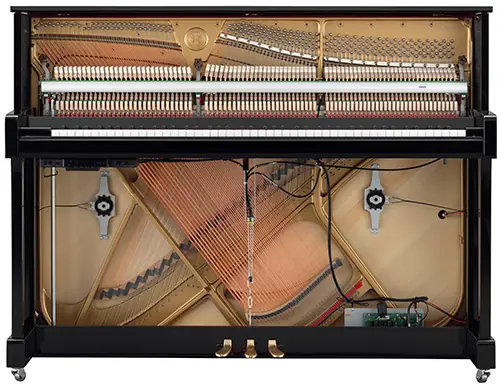

The Yamaha B Series delivers trusted Yamaha acoustic quality at an accessible price point, available in two hybrid configurations. The SC3 Silent System lets you practice in complete silence through headphones, while the TC3 TransAcoustic goes further — vibrating the piano’s own soundboard with digital sound so you get real volume control without headphones at all. Both systems include Grand Expression Modeling, Virtual Resonance Modeling, and binaural CFX and Bösendorfer Imperial sampling for an exceptional headphone experience, plus Bluetooth MIDI for wireless connection to the Smart Pianist app.
Japanese-Made. Built for the Serious Player.

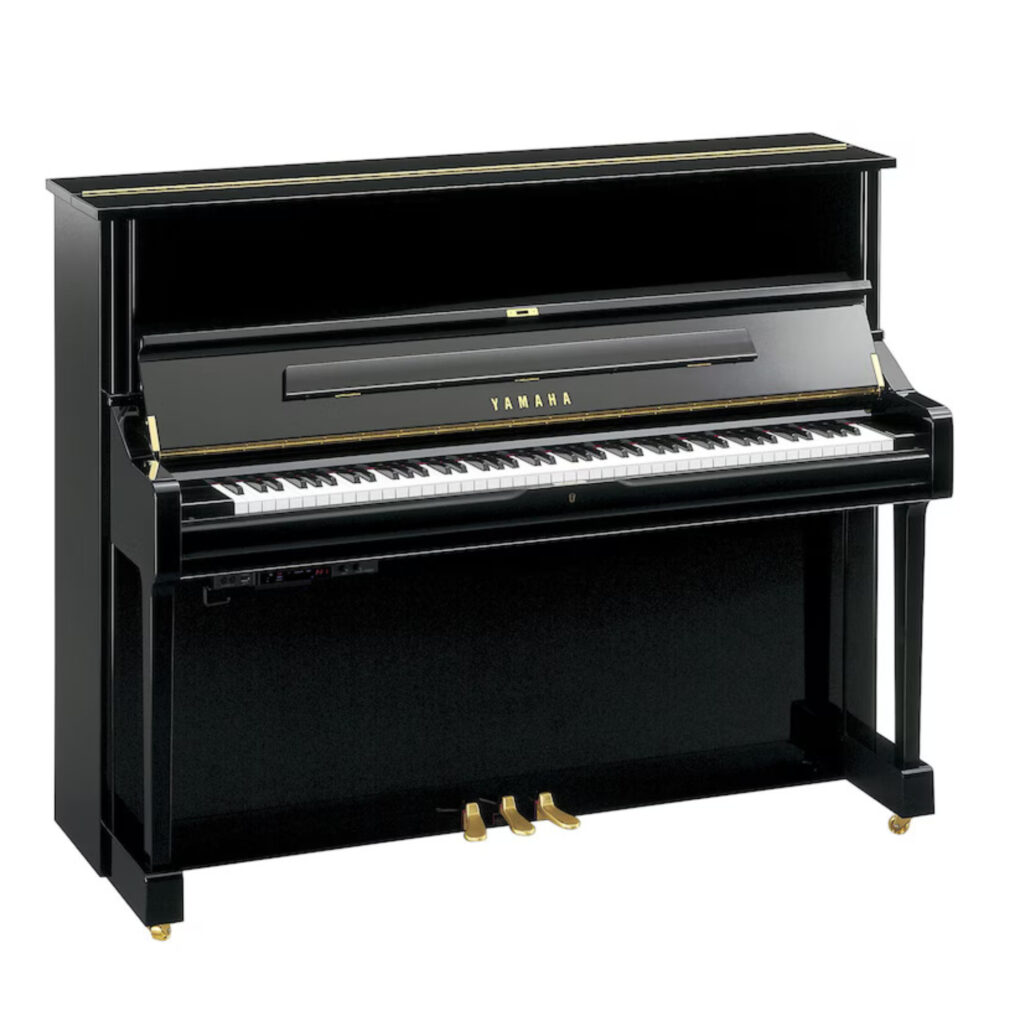

The Yamaha U Series and YUS Series represent the pinnacle of professional upright piano construction — manufactured entirely in Japan to the same exacting standards as Yamaha’s grand piano range. Every model in this section is available in two hybrid configurations: the SH3 Silent System (practice silently through headphones, preserving full acoustic action) and the TA3 TransAcoustic (control volume or layer digital voices through the soundboard — no headphones required).
The U Series and YUS Series feature Yamaha’s binaural CFX sampling, Virtual Resonance Modeling, and Grand Expression Modeling when played silently — the most advanced silent piano sound system available on an upright instrument.
Yamaha offers 6 different piano options for Japanese made baby grands with either the SH3 or TA3 hybrid piano systems. The 5’3 size offers a TA3 or SH3 option for the GC1 or C1X. The 5’8 size for the C2X or GC2 are available with the SH3 option only. All SH3 or TA3 systems are factory installed during the building process of the piano.
Concert-Grade Instruments. Uncompromised Silence.
The Yamaha CX and SX Series concert grand pianos — from the C3X through to the S7X — represent the highest level of Japanese craftsmanship available in a Yamaha silent grand piano. All models in this section feature the SH3 Silent System as standard; the C3X is also available with TA3 TransAcoustic technology for volume control without headphones.
These are instruments chosen by conservatories, recording studios, and professional performers. The SH3 system preserves every nuance of the grand piano action in silent mode — including Grand Expression Modeling and the full CFX binaural experience.
Every Instrument is First and Foremost a Yamaha Acoustic Piano.
The Hybrid Hardware is only installed new in the factory to ensure proper play and Calibration.
| Category | SH3 / TA3 | SC3 |
|---|---|---|
| Upright Models |
U1SH3, U3SH3, YUS1SH3, YUS3SH3, YUS5SH3 U1TA3, YUS1TA3, YUS5TA3 |
B1SC3, B2SC3, B3SC3, P22SC3 |
| Baby & Grand Models |
GC1SH3, GC2SH3, GC1TA3 C1xSH3, C2xSH3, C3xSH3, C5xSH3, C6xSH3, C7xSH3 C1xTA3, C3xTA3 |
GB1kSC3 |
| Binaural Piano | Yes — Brand New Piano Sample | Yes — Brand New Piano Sample |
| Concert Grand Voices | CFX Concert Grand; Bösendorfer | CFX Concert Grand; Bösendorfer |
| Other Piano Voices |
Pop Grand, Ballad Grand, Upright Piano, Historical Pianos (Scarlatti, Mozart, Beethoven, Chopin) |
Upright Piano |
| Electric Pianos | Stage E. Piano, DX E. Piano, Vintage EP | Stage E. Piano, DX E. Piano, Vintage EP |
| Other Instruments |
Harpsichord 8′, Harpsichord 8′+4′, Vibraphone, Celesta, Organ Principal, Organ Tutti, Jazz Organ, Strings, Choir, Synth Pad, Piano + Strings, Piano + Synth Pad, Piano + DX E. Piano |
Harpsichord 8′, Celesta, Organ Principal, Jazz Organ, Strings, Synth Pad |
| Bluetooth | MIDI & Audio (not compatible with Bluetooth headphones) | MIDI & Audio (not compatible with Bluetooth headphones) |
| USB Flash Drive | Playback MIDI files (483+ sounds) & record | Playback MIDI files (483+ sounds) & record |
| USB Wi-Fi Adapter | Yamaha UC-WL01 (optional) — wireless to tablet/laptop | Yamaha UC-WL01 (optional) — wireless to tablet/laptop |
| Aux In | 3.5mm stereo (sound modules, laptop, iPhone) | 3.5mm stereo (sound modules, laptop, iPhone) |
| Aux Out | ¼" R/L+R (instrument cable) | — |
| MIDI (DIN) | In/Out | — |
| USB B (Computer) | MIDI & Audio, bi-directional; best for DAW recording | MIDI & Audio, bi-directional; best for DAW recording |
| Headphone Jacks | 2 × 3.5mm | 2 × 3.5mm |
| Feature | Details |
|---|---|
| Built-in Rhythms |
20 built-in rhythms with Auto Bass function (On/Off), plus Rhythm Intro, Ending and Sync options. Rhythm Styles: 8 Beat, 16 Beat, Shuffle 1, Shuffle 2, Shuffle 3, Gospel, 8 Beat Ballad, 6/8 Slow Rock, Fast Jazz, Slow Jazz, Swing, Jazz Waltz, Samba, Bossa Nova, Rumba, Salsa, Kids Pop, 6/8 March, Christmas Swing, Christmas 3/4. |
| On Board Metronome | Integrated metronome for practice and performance support. |
| Reverb |
6 reverb types plus “Off.” Available in digital mode or TA3 with headphones. Adjustable depth in 5% increments (1–20) or Off. Reverb Types: Off – No Reverb Recital Hall – 20–50 person recital hall Concert Hall – professional-level concert hall Chamber – solarium in a mansion Cathedral – like St. Patrick’s Cathedral, NYC Club – jazz club (Blue Note, NYC) Plate – studio reverb via audio equipment |
| Voice Settings |
VRM (Virtual Resonance Modeling) — Piano voices only. Simulates natural nuance of strings, damper, and body resonance. Can be On or Off. Damper Resonance: 10-point adjustment (when VRM is On). Natural damper-string interaction. Damper noise can be On/Off. String Resonance: 10-point adjustment (when VRM is On). Effect applied when notes are pressed. Duplex Scale Resonance: 10-point adjustment of aliquots for sympathetic vibrations. Body Resonance: 10-point adjustment. Simulates sound contribution of rim, soundboard, beams, and case. |
| Grand Expression Modeling |
Two modes: Static or Dynamic (default).
|
| Keyboard Transpose |
Shift pitch ±12 semitones to play in a different key without transposing notation. Example: set to +6, pressing Middle C produces the G above Middle C. |
| Half Pedal Point |
Sustain pedal mimics acoustic behavior with variable sustain (not just On/Off). Can lower sustain by 2 points or raise by 4 points. |
| Touch Sensitivity |
Adjustable response levels: • -2 (Soft) – high volume even with light playing • -1 (Soft/Medium) – high volume with moderate playing • 0 (Medium) – standard touch sensitivity • +1 (Medium/Hard) – requires moderately strong playing for high volume • +2 (Hard) – requires strong playing for high volume • OFF (Fixed) – same volume regardless of touch (default for Harpsichords) |
| Master Tune |
Fine-tune A above Middle C (A440) from 414.8 Hz to 466.8 Hz in 0.2 Hz increments. All other 87 notes adjust accordingly. Allows accurate pitch matching with other instruments, recordings, or acoustic piano when layering through TA3/Silent Piano. |
| Scale Type | Selectable temperament options for alternate tuning systems. |
| Yamaha TA3, SH3 and SC3 Spec Sheet | TA3 | SH3 | SC3 | ||
|---|---|---|---|---|---|
| Silencing System | Upright Mechanism | Hammer Shank Stopper Operated by Middle Pedal (YUS5 TA3, SH3 Silencing Lever) | |||
| Grand Mechanism | Motor Driven – (GB1kSC3 – Silencing Lever) | ||||
| Action (Only for Grands) | Quick Escape Double Jack | ||||
| Soundboard Speaker System | Mechanism | Trans Acoustic Technology | – | – | |
| Transducer | Exclusively for TA3 | – | – | ||
| Control Interface | Keyboard | Touch Response | Soft, Soft/Medium, Medium, Medium/Hard, Hard, Fixed | ||
| Upright Pedals – Acoustic | Soft, Silencing, Sustain YUS5 – Soft, Sostenuto, Sustain | ||||
| Baby Grand& Grand Pedals – Acoustic | Una Corda, Sostenuto, Sustain GB1k – Una Corda, Bass Sustain, Sustain | ||||
| Display | Type | 7 Segment LED | |||
| Panel | Language | English | |||
| Sensor System | Key Sensors | System | Articulation Sensor System | ||
| Key Sensors | Non-Contact Continuous Detection Electromagnetic Inductive Type | ||||
| Hammer Sensors (Baby & Grand Pianos Only) | Non – Contact 2 Point Optical Fiber Type | – | |||
| Pedal Sensors | Left (Soft) Pedal | On / Off Detection Sensor | |||
| Sostenuto Pedal | ON / Off Detection Sensor | – | |||
| Sustain Pedal | Continuous Detection Sensor | ||||
| Voices | Tone Generation | Piano Sound | Yamaha CFX, Bosendorfer Imperial – New Samples for 2023 – | ||
| Binaural Sampling | For CFX and Bosendorfer W/ Headphones only | ||||
| Piano Effects | VRM Virtual Resonance Modeling | YES | |||
| Grand Expression Modeling | YES | ||||
| Key- Off Samples | YES | ||||
| Smooth Relase | YES | ||||
| Polyphony (MAX) | 256 | ||||
| Preset | Number of Voices | 25 (Piano 5 + FortePiano 4 + Others 16) | 12 (Piano 3 + Others 9) | ||
| Voices for MIDI Song Playback | 480 XG Voices + 12 Drum/SFX Kits | – | |||
| Effects | Types | Reverb | 6 Types & Off | ||
| Brilliance | 5 Types | ||||
| IAC Intelligent Audio Control | Yes | ||||
| Stereo Optimizer | Yes for All Instruments except CFX and Bosendorfer | ||||
| Songs (MIDI) | Preset | # of Preset Songs | 25 Voice Demo Songs 50 Classics | 12 Voice Demo Songs, 50 Classics | |
| Recording Internal | Number of Songs | 10 | |||
| Data Capacity | approx. 500 KB / SONG | ||||
| Format | Playback | SMF (Format 0, Format 1) | |||
| Recording | SMF (Format 0 ) | ||||
| Songs Audio .WAV File | Recording Time (Max.) | 80 Minutes / Song | |||
| Format | Playback | WAV (44.1 kHz, 16 bit, Stereo | |||
| Recording | WAV (44.1 kHz, 16 bit, Stereo | ||||
| Hybrid Class | TA3 | SH3 | SC3 | ||
| Functions | Rhythms | Number of Rhythms | 20 | ||
| Overall Controls | Metronome | Yes | |||
| Tempo Range | 5 – 500 | ||||
| Transpose | – 12 – 0 – + 12 | ||||
| Tuning | 414.8 – 440.0 – 466.8 Hz ( adj in .2Hz Increments) | ||||
| USB Audio Interface | 44.1 kHz, 24 bit, Stereo | ||||
| Bluetooth | Audio | Supported Profile | A2DP | ||
| Compatible Profile | SBC | ||||
| MIDI | Comply with Bluetooth Low Energy MIDI Specification | ||||
| BlueTooth Version | 4.2 | ||||
| Wireless Output | Bluetooth Class 2 | ||||
| Max. Communication Distance | Up to 10 meters | ||||
| Radio Frequency (Operational Frequency) | 2402 – 2480 MHz | ||||
| Max. Output Power EIRP | 4dBm | ||||
| Type of Modulation | FHSS | ||||
| Storage & Connectivity | Storage | Internal Memory | Approx 1.3 MB | ||
| External Drives | USB Flash Drive – BELOW 50 GB BEST | ||||
| Connectivity | DC IN | 24 V | 16 V | ||
| Headphones | Stereo Mini Jack x 2 – Wired Headphones Only | ||||
| MIDI | IN, OUT | USB to Host / Bluetooth Midi | |||
| AUX IN | Stereo Mini Jack | USB to HOST / Bluetooth Audio | |||
| AUX OUT | Stereo or Mono 1/4 instrument Cable | – | |||
| USB TO DEVICE | YES | ||||
| USB to HOST | YES | ||||
| AUTO POWER OFF | YES | ||||
| Head Phones & Head Phones Hanger Included | YES | ||||
| Bench with Storage Included | YES | ||||
| 50 Greatest Hits Song Book Included | YES | NO | |||
| Owners Manual Included | YES | ||||
| Power Chord Model – Included w/ piano | PA-500 – DC 24 Volts, 2.5A | PA-300C DC 16V, 2.4A | |||
| Separately Sold Accessories | USB WIRELESS LAN ADAPTER – (UD-WL01) | ||||
