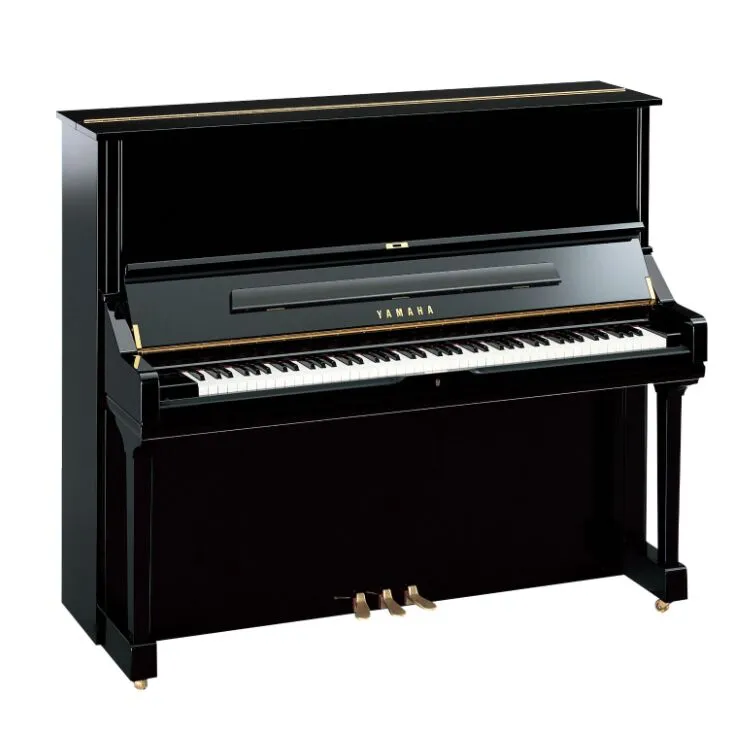

Yamaha U3 52″ Upright Piano

Yamaha U3 Acoustic Piano Dimensions
Height 52″ 131 cm
Width 60″ 153 cm
Depth 26″ 65 cm
Weight 517lbs 235 kg
Yamaha U3 Piano MSRP Prices
U3 PE Polished Ebony $15,699
U3 AW Satin Walnut $17,999
U3 PM Polished Mahogany $17,999
U3 WH Polished Polished White $17,999
In Store Only

Call for more information (609) 403-6045


Product Description

Yamaha U3 Acoustic Piano

The Yamaha U3 52″ Upright Acoustic Piano is part of the Yamaha Professional collection.  The Yamaha U3 Piano Dimensions are the largest of the upright pianos that Yamaha manufactures.

This instrument is one of our favorite in Yamaha’s collection of World Class Upright Pianos,  A Professional Level Upright Piano crafted for the discerning musician.

Advanced Scale Design

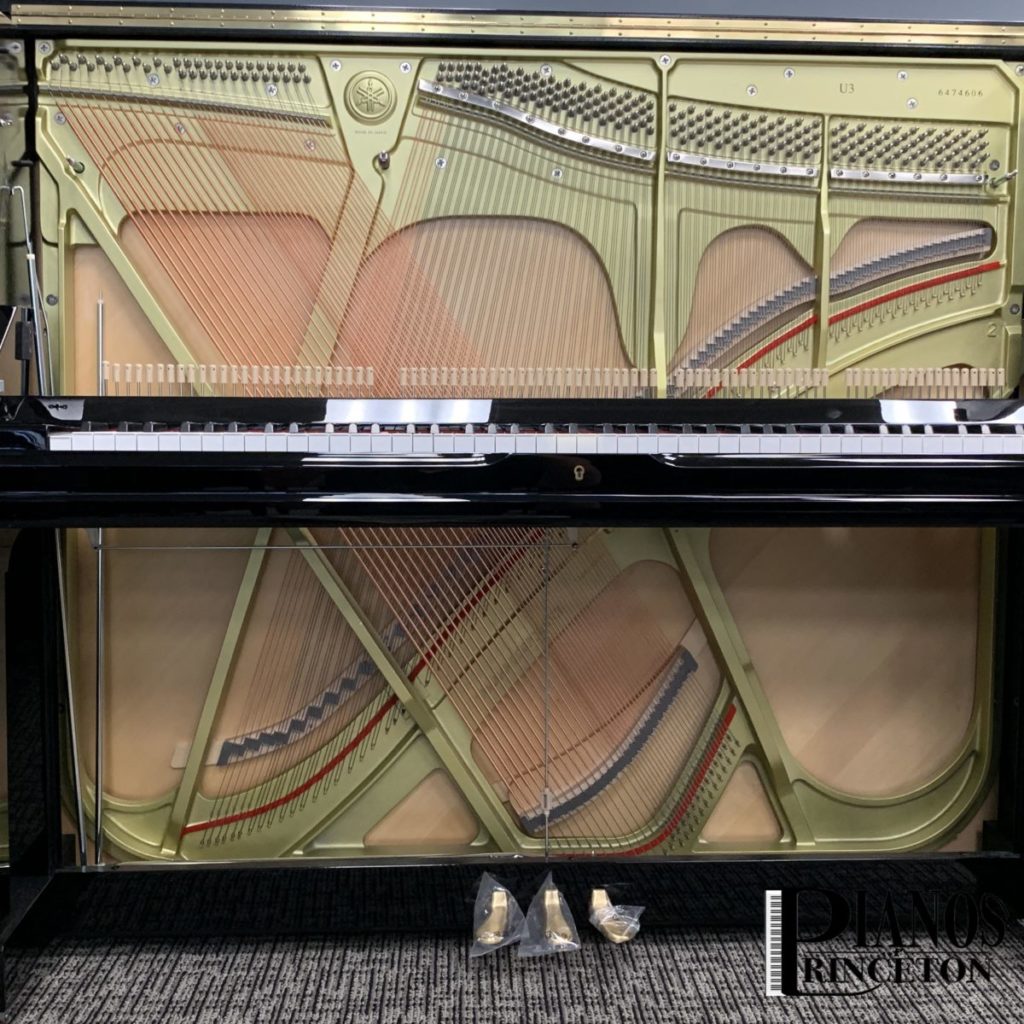

Yamaha U3 Upright Piano Scale Design - Picture of the Yamaha U3 Upright Piano with the Action Removed. IT is showing the Strings, key shanks, the raised capstans and the Harp. The Yamaha U3 Dimensions are 52 inches tall. Sixty Inches Wide and twenty six inches deepRefinements in all elements of sound production have given today’s U series a richer , more resonant voice with evenly balanced timbre across the entire keyboard.  One of many features found on the Yamaha Professional Upright Collection.

Soundboard and Frame – Yamaha U3

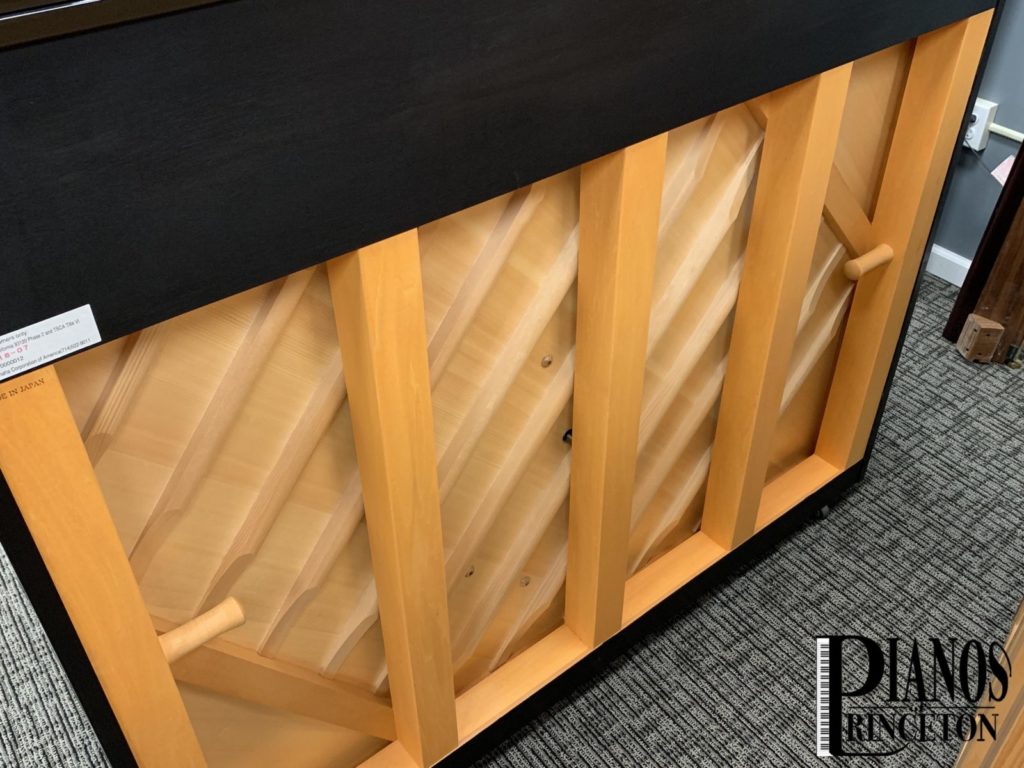

Special rib configurations add strength to the soundboard, while back post and other advances further enhance rigidity, resonance and structural stability.  The large sound board is why some people refer to the U3 as Yamaha’s Upright Grand.52 inch upright piano sound board - The sound board and back post of the yamaha u3 The Yamaha U3  52″ Upright Acoustic Piano features a Spruce Sound Board, Ribs and Back Post.  The Full Size Ribs are notched into the liner of the piano to give proper resonance.

The U3 Yamaha Upright Grand as some call it features a 2369 square inch sound board With a Hard Maple Bridge transferring the string energy to the soundboard.

Redesigned Hammers

U Series hammers use materials specifically selected for each model to provide optimum tone production, response and long-term durability.

Yamaha U3 Piano Hammer

The Yamaha U3 Hammer is an under felted hammer.  Featuring 2 different types of felt at two different levels of compression.  This under felt helps maintains the piano tone as the hammer ages. It is generally seen in higher end pianos above 45 inches tall.

The Hammer weight is set to 22 pounds for the Yamaha U3 52″ upright piano .  The hammer core and the hammer shank are made of Spruce due to it’s strength.

Piano hammers range in size depending on the scale of the harp or plate.  The hammer is the largest at the bottom most note and the smallest at the top note.  This is because the larger bass strings need a bigger force to get the string to resonate.  Yamaha Piano Engineer’s select each hammer design to complement the pianos Scale and intended use.

Soft-Close Fallboard

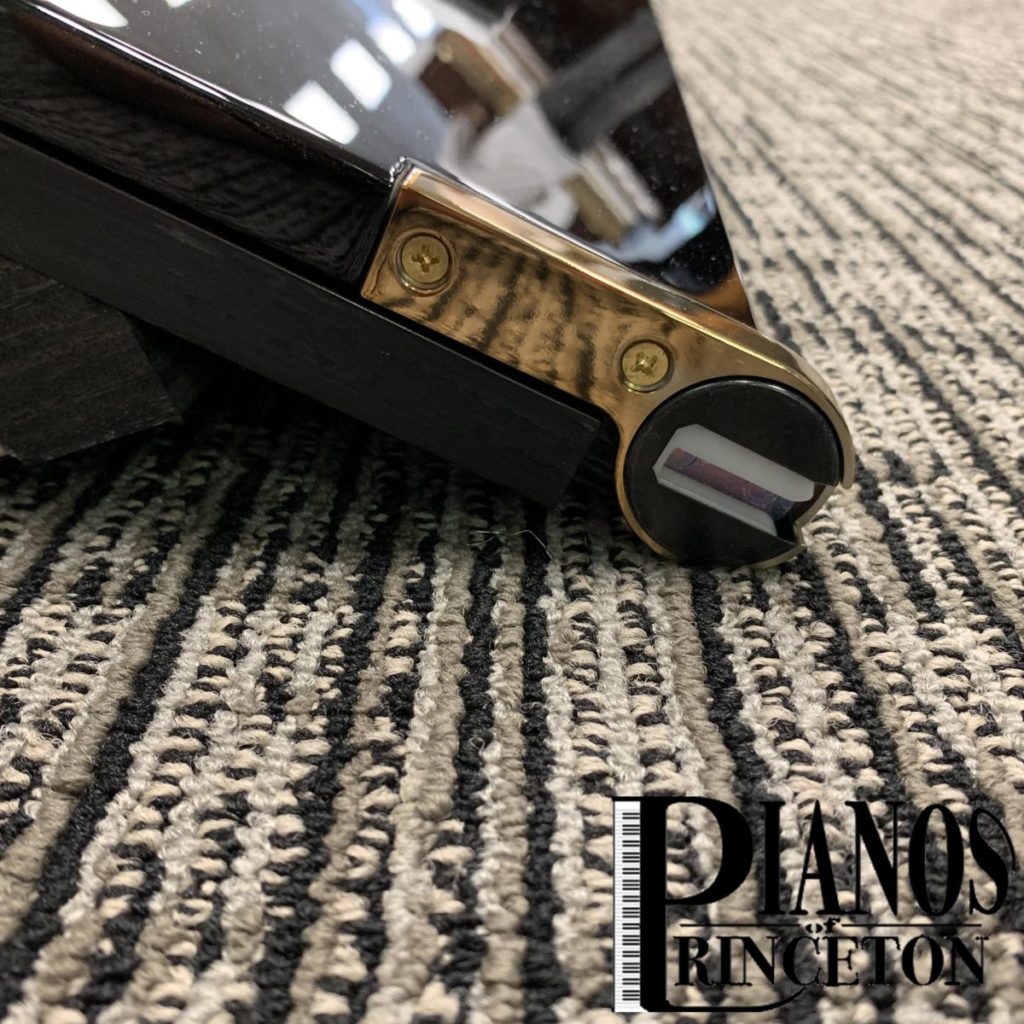

Yamaha U3 Professional Collection Soft fall fallboard , Yamaha Upright Grand A damping mechanism, formerly used only in grand pianos, prevents the fallboard from dropping abruptly onto the keyboard, guarding against accidental injury or damage.

Designed right into the sides of the piano fallboard offering a discrete dampening mechanism that is pleasing to the eye.

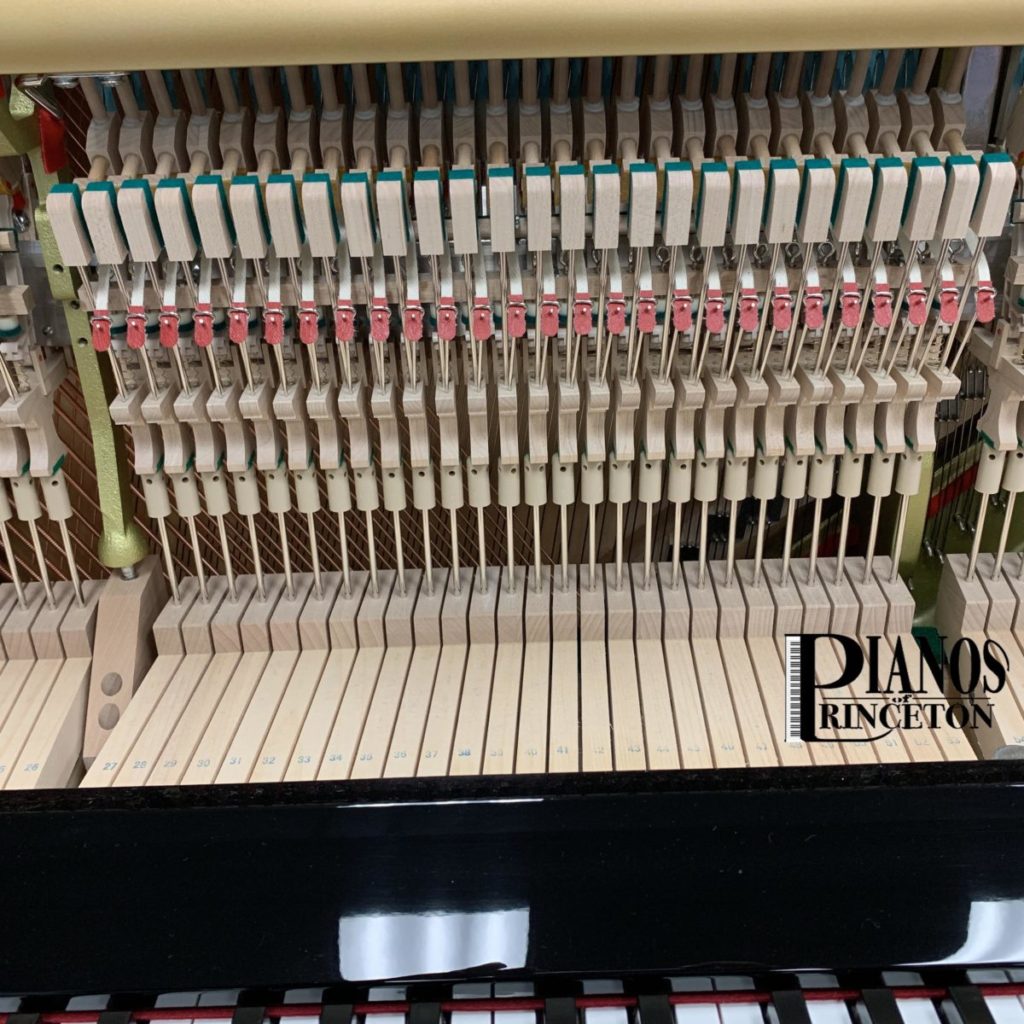

Yamaha U3 Professional Upright Piano Action

Featuring a large key shank, a raised Capstan and a larger Whippen the Yamaha U3 is one of the most responsive upright pianos on the market.  This allows the piano player greater control over the volume dynamics when playing.

The Yamaha U3 Piano Dimensions is the deepest of the upright line to make space for the expanded internal key shank.  The Yamaha U3 Piano Price is worth it alone for the elongated Capstans and Larger Whippens.

Yamaha U3 Piano action, 52" upright piano

Yamaha U3 2023 Finish Options

  • U3 PE – Polished Ebony
  • U3 PM – Polished Mahogany
  • U3 SAW – Satin American Walnut
  • U3 WH Polished White – New for 2023!

Yamaha U Series Video

Yamaha Warranty

Featuring a 10 Year in home Warranty from Yamaha of America – Yamaha Professional Upright

Link to Yamaha warranty

Click Here to Register your New U3 Piano with Yamaha

*Yamaha U3 Piano Price Subject to Change
